Resonant Slot Antenna
10 GHz Omnidirectional Antenna
Ken Vickers G3YKI
I was particularly intrigued by his 'Double Delta Skeleton Slot that consists of two tall and narrow inverted delta loops at 90-degrees to each other and fed either in series or parallel at the bottom. Although a robust remote antenna tuner must be used at the feedpoint, the antenna design has a lot of good things going for it. Slot antennas are an about λ/2 elongated slot, cut in a conductive plate (Consider an infinite conducting sheet), and excited in the center. This slot behaves according to Babinet's principle as resonant radiator.
There is no shortage of information on how to design slotted waveguide antennas, but to actually make them can become a problem without relatively sophisticated machining facilities, especially when you get to the higher frequencies. For example, the slots in an X band antenna might be about 1mm wide by 12 mm long and difficult to make by hand. This antenna was made in a few hours and requires no more than a hand drill, saw and file.The double-resonant behavior observed in this substrate-integrated cavity-backed slot antenna (SICBSA) is utilized to enhance its bandwidth compared to a typical cavity-backed slot antenna. A prototype of the proposed antenna is fabricated and tested. Slotted waveguide array antennas can be realized both as resonant and non-resonant according to the wave propagation inside the waveguide (respectively standing or travelling wave).
So what's the difference?

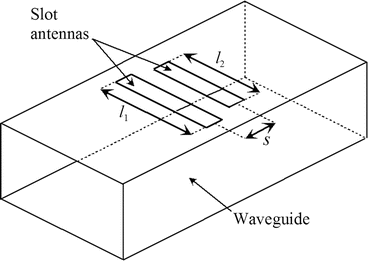

This antenna uses round holes rather than slots. They are much easier to make! A normal slotted waveguide antenna has the slots in the broad face of the waveguide. The broad face (of a vertical waveguide) has both vertical and horizontal currents, so a vertical slot has to be used if you want to radiate only horizontal polarisation. The short face carries only horizontal currents so the shape of the holes does not matter much.
I searched all the antenna books I could find, but no one mentioned an antenna like this. But after I convinced myself that it should work, I made one, and it did work.
What are the Disadvantages?
The holes are not resonant at 10 GHz, so they do not radiate as readily as resonant slots. The result is a high 'Q' sharply tuned antenna.
The radiating elements on opposite sides of the waveguide are further apart, so the omnidirectionality is not as good.
The vertical spacing of the elements is greater than one wavelength in free space which leads to less than optimum gain for the length of the antenna, and larger sidelobes in the vertical plane.
How to make it.
Dimensions relate to WG16 for 10.368 GHz.
The waveguide must be exactly a multiple of one half guide wavelength long between short circuits at the operating frequency. The holes are 3/8' (9.5mm) diameter (largest possible)and spaced one guide wavelength apart, starting one quarter guide wavelength from the short circuit. Holes at the same height on opposite faces will give opposite contributions in the directions of the broad face, resulting in a null in that direction. To get the side lobes, as in the pattern shown, the holes on opposite faces are offset by one half wavelength vertically.
A tuning screw is required to set the resonant frequency. The antenna is fed at the centre by a small probe in the centre of the broad face, rather like any other co-axial to waveguide transition.
Results
The antenna was set up on a tripod with receiver and the vertical and horizontal radiation patterns were measured.
Slot Antenna Resonant Frequency
Vertical and horizontal Radiation Patterns of a 6 Element Antenna.Slot Antenna Resonant Frequency Formula
Polarisation
The antenna was also measured with a vertically polarised source to confirm that it really was working as a horizontally polarised antenna. The response was generally about 20 dB down on the horizontal response. Considering that my 'test range' was surrounded by trees, some of which would be illuminated with RF and scatter it with random polarisation, I would not expect any better.
More Pictures Let me know if you found this interesting,
especially if you build one!
